Enhanced DXF File Import
| Basic | Standard | Professional |
|---|---|---|
| O | O | O |
Enhancements have been made to existing features such as Classify by Color, Read Blocks as Parts, and Input Type.
Main Menu File > Import > DXF...

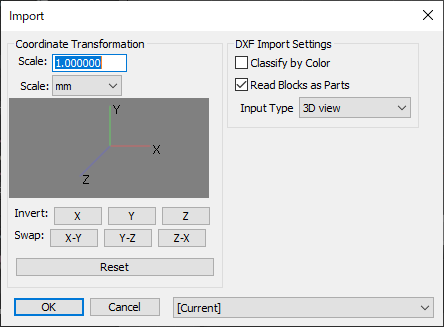

DXF Import Settings
- Classify by Color
- Place the shape in a part sorted by the AutoCAD Color Index (ACI), referring to the defined color of the shape.
- Read Blocks as Parts
- When on, the blocks used in the drawing are read together in a part and placed in the LAYER part to which they belong. (BLOCK name is reflected in the part name)
When off, the shape of the block is placed directly in the LAYER part to which it belongs. - Input Type
- Import shapes to 3D View or Drawing View.
SPLINE shape can now be imported.
Import spline shapes as NURBS automatically.
Shape line color is now supported.
Shape line color can be checked in Drafting display mode.
Also see Drafting Display Mode
