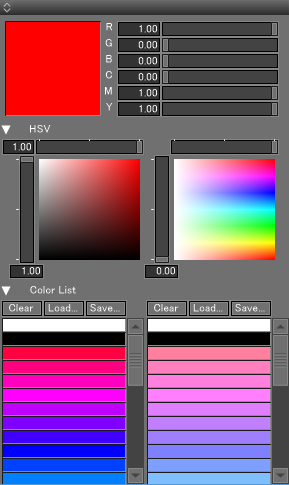

Color Window

Displayed by selecting menu View > Color. This palette allows you to configure color settings.

Color

Basic Settings

Color Box: This box shows the currently selected color. You can drag the color to the color box of other windows. Clicking the color box shows the color picker of the operating system. You may use the color picker to select new colors.
R/G/B Sliders, Text Boxes: These controls allow you to configure the ratio of three primary colors of R/G/B color specification system.
R is for red.
G is for green.
B is for blue.
C/M/Y Sliders, Text Boxes: These controls allow you to configure the ration three primary colors of of CMY color specification system.
C is for cyan.
M is for magenta.
Y is for yellow.

These controls allow you to configure the saturation and brightness.

Saturation Slider, Text Box: These controls allow you to configure the saturation. A value closer to 1 makes the color purer.
Value Slider, Text Box: These controls allow you to configure the brightness. A value closer to 0 makes the color darker. A value close to 1 makes the color brighter.
Hue Sliders, Text Boxes: These controls allow you to configure the hue.

Colors are listed.

Clear Button: This button removes the colors from the list.
Save... Button: This button saves the color list as a color list file (.shdclt).
Load... Button: This button serves to load a color list file (.shdclt).
The color list can load Adobe Illustrator color files and color systems (swatch libraries of 7.0 on Macintosh/Swatch Library .Ai files of 7.0.1 on Windows).
