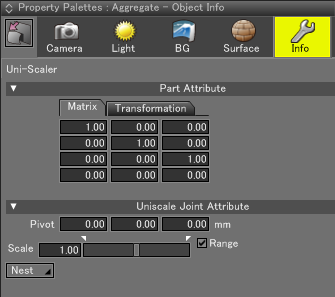

Uniscale Joint Information

These settings are displayed when a uniscale joint is selected.

Part Attribute Settings

For details on the Part Attribute Settings, please refer to Joint Information.

Pivot: Specifies the center coordinates of the uniscale joint.
Joint Value (Scale): Specifies the joint value of the uniscale joint. The range of values can be restricted using the joint limits (triangle icons) above the slider control.

Range

Select this checkbox to enable the upper and lower joint limits.
Deselect this option to disable joint limits.

Joint Pop-up Menu

Sets the level of hierarchy affected by the joint value.

Nest: Changes to the joint value only affect nested parts, i.e., only the objects and parts inside the joint.
Flat: Changes to the joint value affect both nested parts and sibling parts.
