Rotator Joint Information

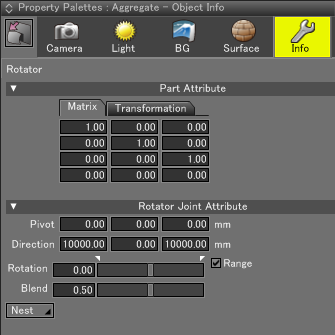

These settings are displayed when a rotator joint is selected.
Part Attribute Settings
For details on the Part Attribute Settings, please refer to Joint Information.
Rotator Joint Attribute Settings
- Pivot
- Specifies the center coordinates of the joint.
- Direction
- Specifies the direction of the rotation relative to each axis.
- Joint Value (Rotation)
- The joint value of the rotator joint. The range of values can be restricted using the joint limits (triangle icons) above the slider control.
- Range
- Select this checkbox to enable the upper and lower joint limits.
Deselect this option to disable joint limits. - Blend
- When the object is bound to multiple joints, the Blend value determines the weight of each. The default value is 0.5. Blend values can be set for slider, rotator, and ball joints.
- Joint Pop-up Menu
- Sets the level of hierarchy affected by the joint value.
