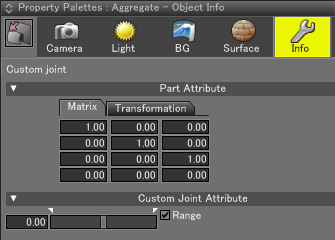

Custom Joint Information

These settings are displayed when a custom joint is selected.

Part Attribute Settings

For details on the Part Attribute Settings, please refer to Joint Information.

Custom Joint Attribute Settings

Joint Value

The joint value of the custom joint. The range of values can be restricted using the joint limits (triangle icons) above the slider control.

Range

Select this checkbox to enable the upper and lower joint limits.
Deselect this option to disable joint limits.
