Create Mirroring Shape of Selected
| Basic | Standard | Professional |
|---|---|---|
| O | O | O |
Create mirroring shape of selected based on tangent plane at the snapped position function has been added.

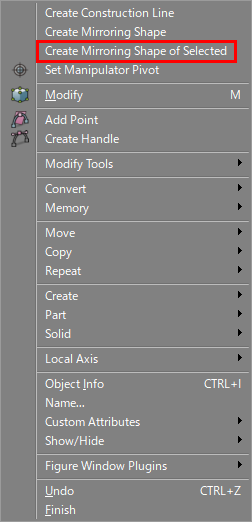

Right Click Create Mirroring Shape of Selected
When you right-click on the following conditions, Create Mirroring Shape of Selected will be displayed in the menu.
- Object Snap is on
- Select shape(s)
- Snap to a face of a shape other than the selected shape

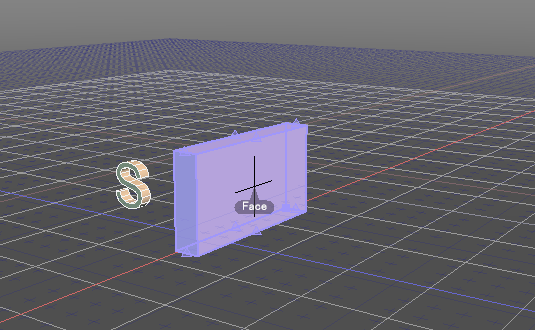

- Select the shape "S" and snap on a box surface.

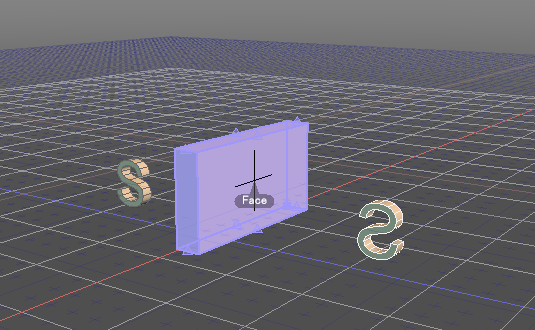

- Select Create Mirroring Shape of Selected from the right-click menu to create a mirrored copy of the box surface in the same part.
