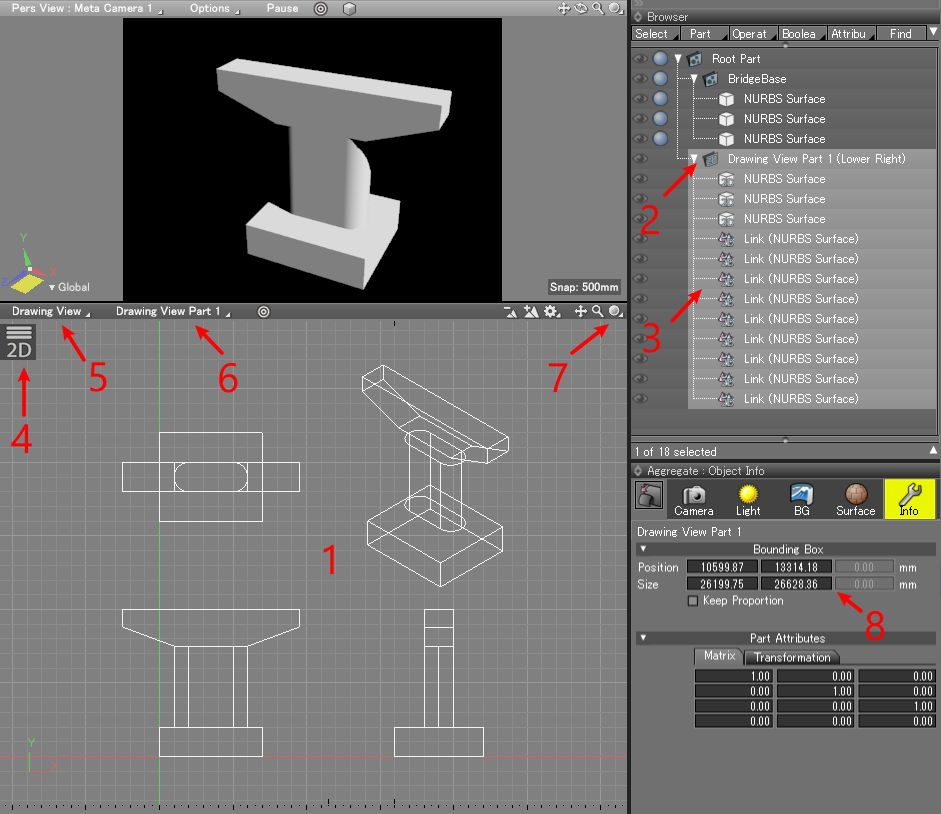

Drawing View

1. Drawing View

Independent view for 2D drawing. Multiple drawing views are supported.

2. Drawing View Part

When you create a shape on a Drawing View, it is automatically created.

Create from Tools > Part > Drawing View Part manually.

Sequential numbering is automatically added when you create multiple drawing view parts.

It can be only placed directly under the root part.

The shapes placed within this part are displayed in the Drawing View viewport.

If the Drawing View is displayed in a viewport, viewport position will be attached to the end of part name. (Upper Left, Upper Right, Lower Left and Lower Right)

3. 2D Shapes

Shapes placed in the Drawing View Part will have a "2D" symbol over the icon to distinguish them from 3D shapes.

As with the normal shape, it can be placed and moved freely in and out of the part.

4. Drawing View Tool Bar

Click to open a toolbox that summarizes the main features use for 2D drawing.

See Also Drawing View Tool

5. View Mode

Select Drawing View to switch between the views.

6. Drawing View Mode

The Drawing View Parts in the scene are listed. Select the view part to be displayed.

If there is no drawing view part, selection area will be "---" .

7. Display Mode

Only those items that are available for the Drawing View are listed.

8. Object Info Window

The shapes in the Drawing View Part are treated as 2D shapes, so only X and Y are active in position and size.
