Wrapping Mesh Quadrilateral Element Supported
| Basic | Standard | Professional |
|---|---|---|
| O | O | O |
Triangular and quadrangular elements can be used together for wrapping mesh.
Interface Toolbox : Modify > Tools > Wrapping Mesh
Main Menu Tools > Modify Tools > Wrapping Mesh

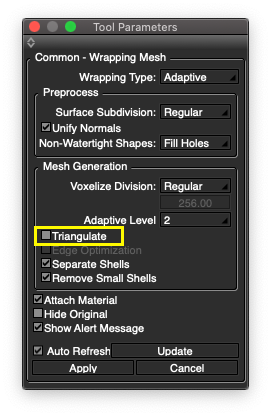

- Triangulate
- Enable to devide each element to triangles.

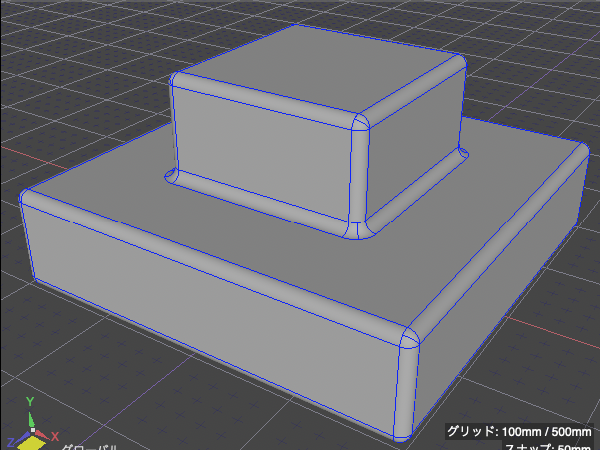

Origin Shape

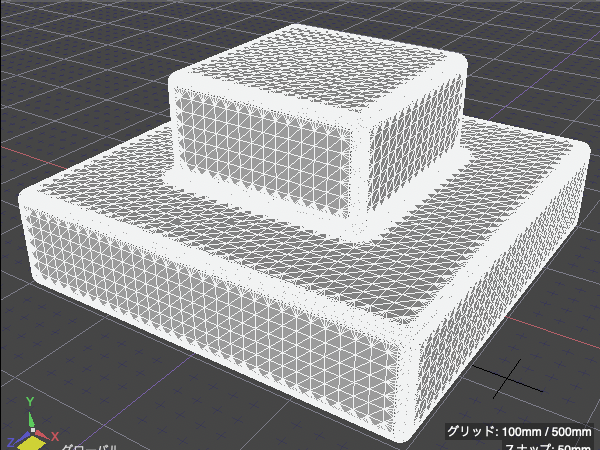

Triangulate On (conventional)

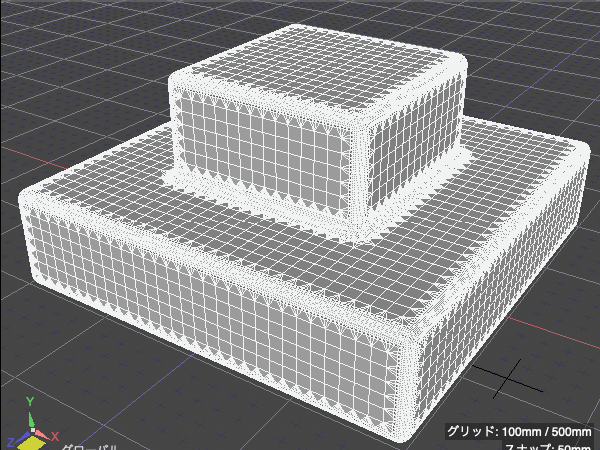

Triangulate Off (default settings for 20.1 or later)
