Tool Parameters

Reference Plane

Select the XZ, YZ, or XY plane to use as the reference plane for creating the slot.
When using the mouse, the plane used for the initial drag becomes the reference plane.

Position 1

The coordinates of the start point of the slot.

Position 2

The coordinates of the end point of the slot.

Radius

The radius of the slot.

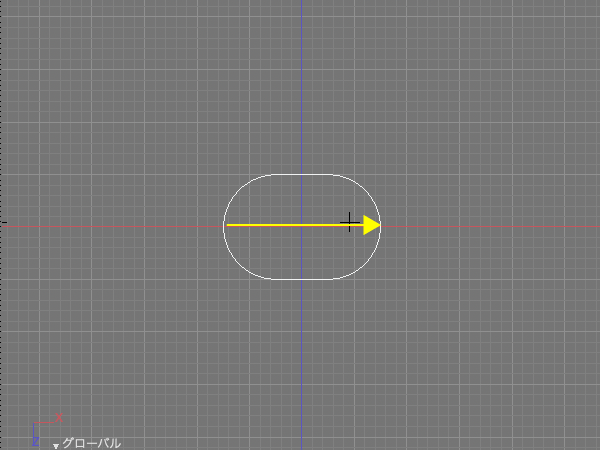

Start-End

Create a slot with the start and end points as the center of the semicircle.

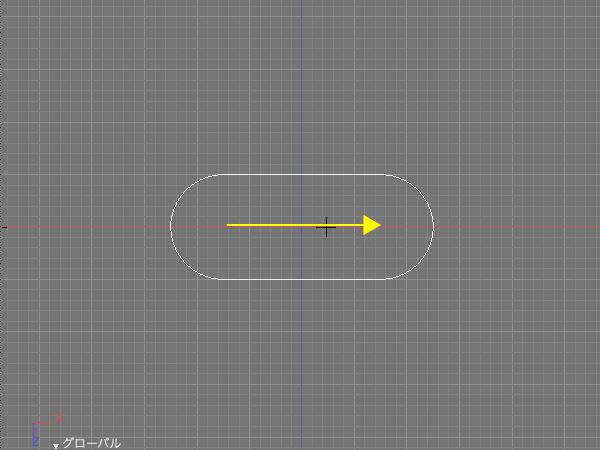

Tip-Tip

Create a slot with the start and end points as the externally tangent points of the semicircle.

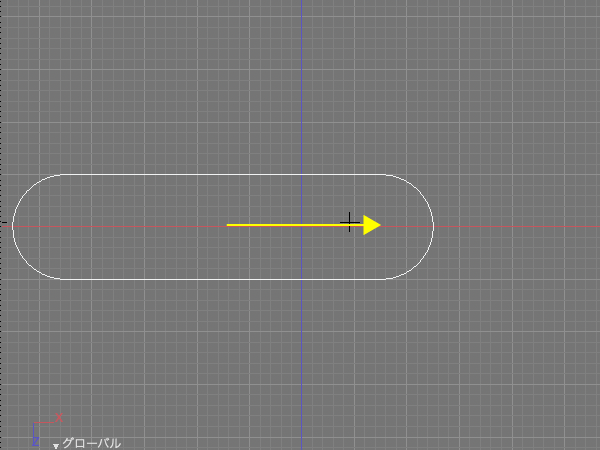

Center-End

Create a slot with the start point as the center of the slot and the end point as the center of the semicircle, which is twice the size and the diameter of the dragged area.

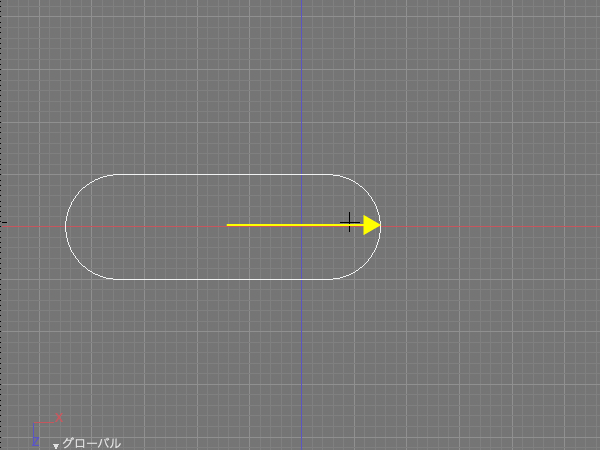

Center-Tip

Create a slot with the start point as the center of the slot and the end point as the externally tangent point of the semicircle, which is twice the size and the diameter of the dragged area.

Create Dimensions

Create dimensions while creating.

Apply

Confirm the slot creation.

Show Dimensions

Display dimensions while creating.

Mouse Operarion

Drag in the Figure Window to create slot.

1. Drag in the Figure Window to specify start and end points.



2. Drag again to specify the radius of the slot.
