Cones
Use the Cone tool to create a cone as a NURBS surface.
| Basic | Standard | Professional |
|---|---|---|
| - | - | O |
Usage

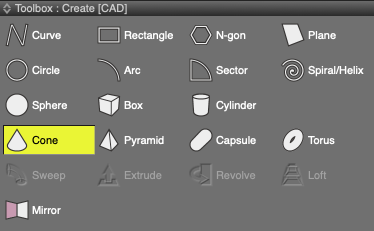

- In CAD Mode, select Cone from the Toolbox's CAD creation tools.
- Drag in the Figure Window to create the bottom face. The starting point of the drag becomes the center point, and the distance dragged becomes the radius.
- Drag in a perpendicular viewport to specify the height.
Tool Parameters
- Reference Plane
- Select the XZ, YZ, or XY plane to use as the reference plane for creating the cone.
- When using the mouse, the plane used for the initial drag becomes the reference plane.
- Center
- The center XYZ coordinates of the cone's face.
- Radius
- The radius of the cone's face.
- Height
- The height of the cone.
- Apply
- Confirms the cone creation.
- Show Dimensions
- When creating the object, its dimensions are displayed in the Figure Window.
Note Available in Shade3D Professional.
