Viewport Grid Increments

The viewport grid distance has been changed to (10, 20, 50) when zooming in and out in the Figure Window.

This will sync with the ruler units and delimiter together.

Basic	Standard	Professional
O	O	O

Differences from Previous Versions of Shade

TipFrom Preferences Dialog > General > Mouse Group > Viewport Grid Increments, select (10, 12.5, 25, 50) to use the same setting as in Shade 13 and Shade 3D ver.14.

Set the viewport grid to (10, 20, 50)

• Dot 10

• Dot 20

• Dot 50


Set the viewport grid to (10, 12.5, 25, 50)

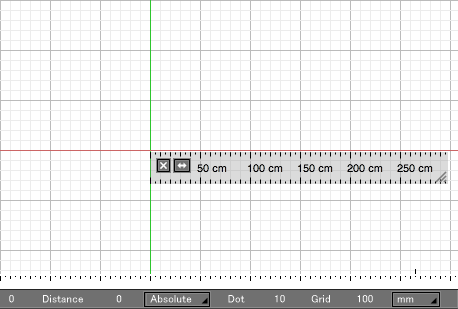

• Dot 10

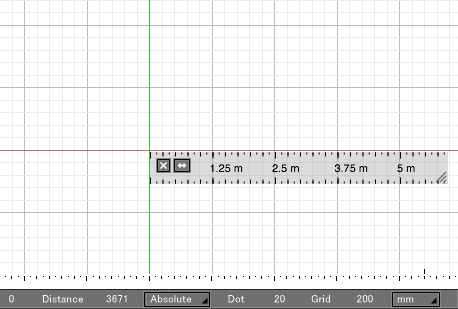

• Dot 20

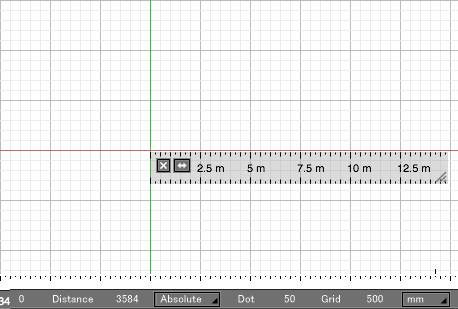

• Dot 50
